What is the use of Color Palettes? How to manage different Color Palettes?

If you are using DesignO version 2.1 or below, kindly refer to the earlier version video provided below.

If you are using DesignO version 2.2 or later, please follow the updated video below for accurate guidance.

Please note that the video and article screenshots were created separately and may not exactly match. Some minor visual differences in the interface may be present, but the overall functionality and steps remain the same.

This guide provides a detailed walkthrough on how to manage color palettes in DesignO. It covers how to add and create color palettes, their uses, and how to manage different types of color palettes.

Step 1: Navigate to the DesignO.

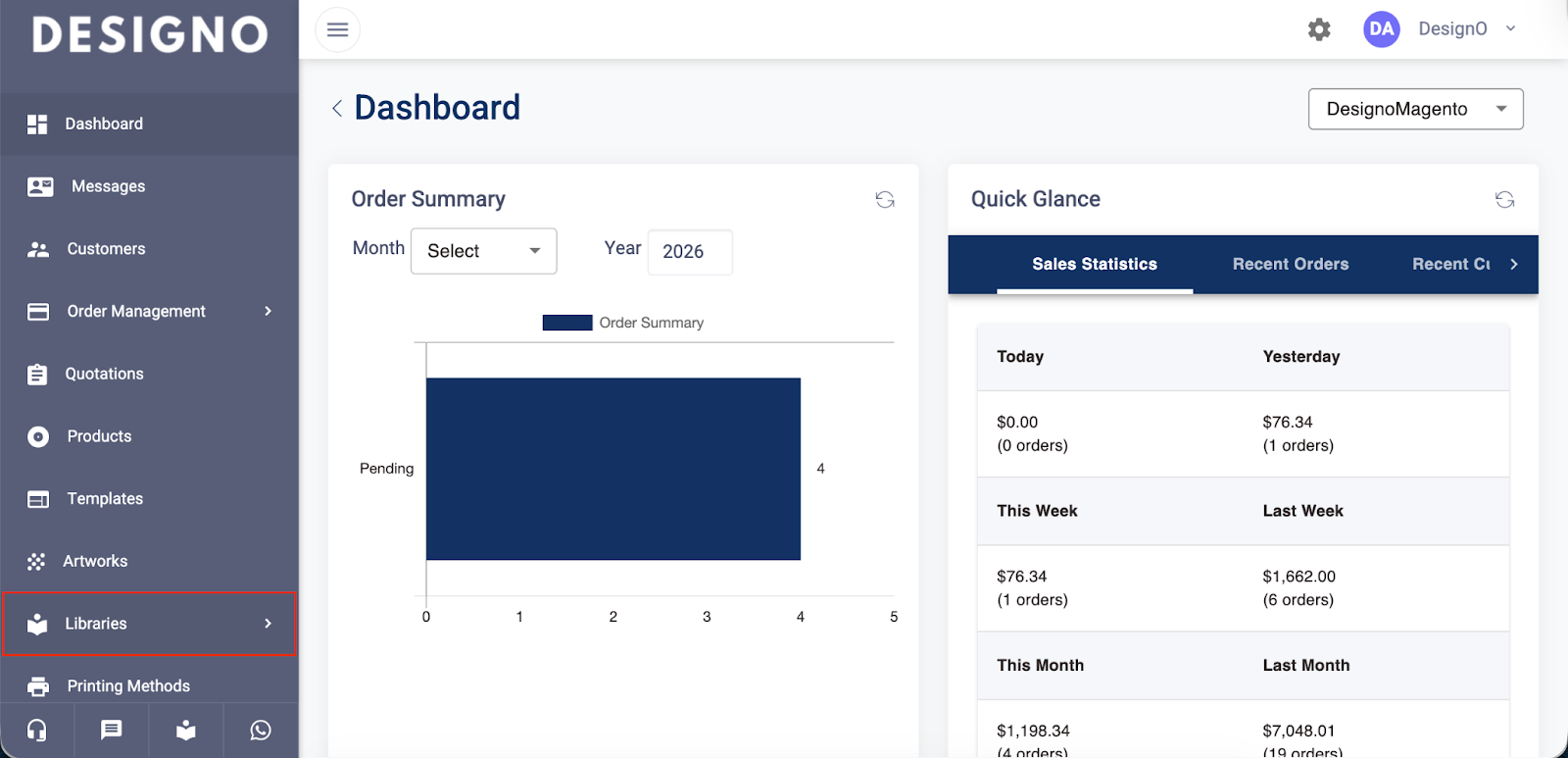

Step 2: Go to the left panel and click on Libraries.

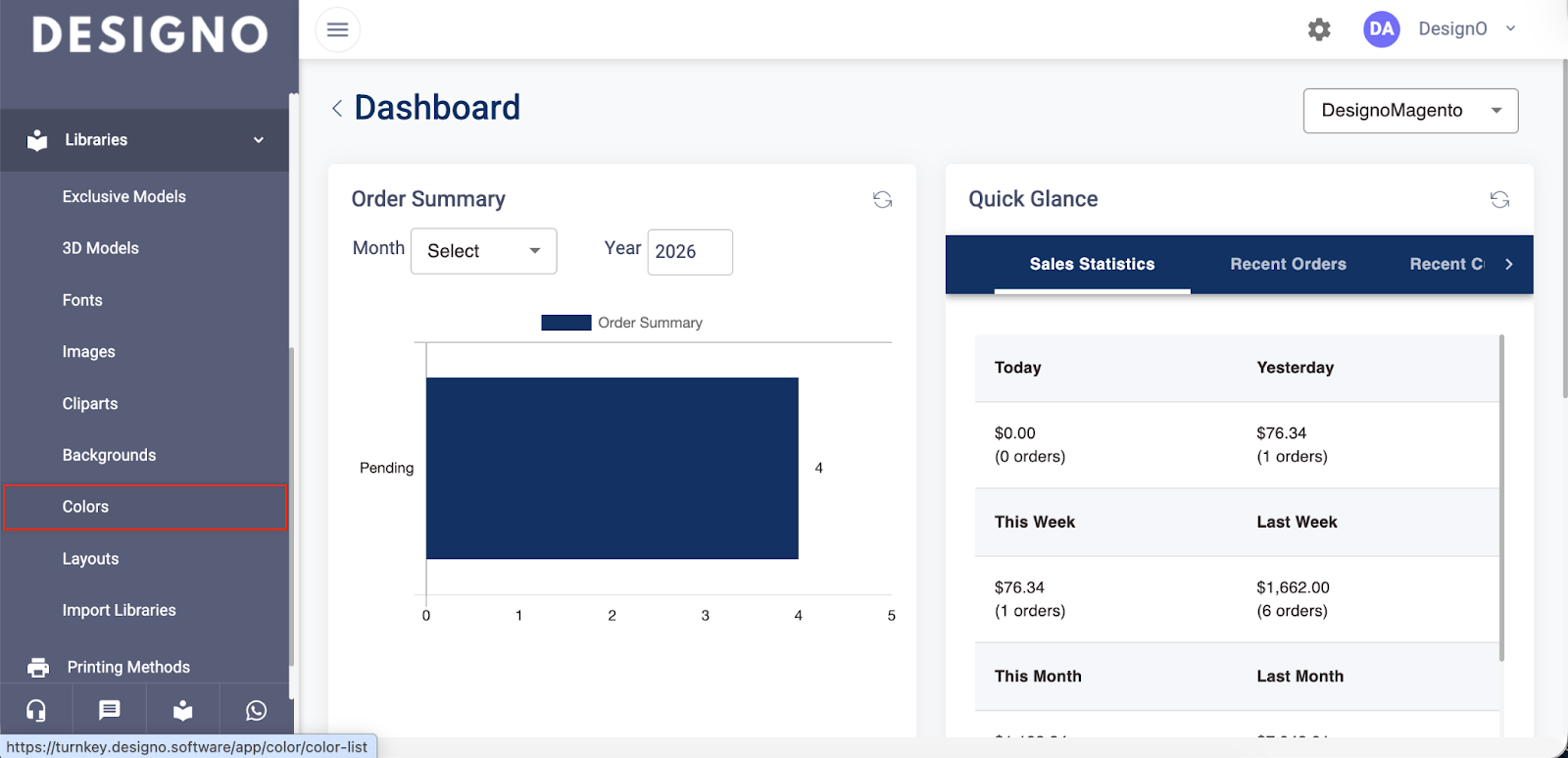

Step 3: Click on the Colors option.

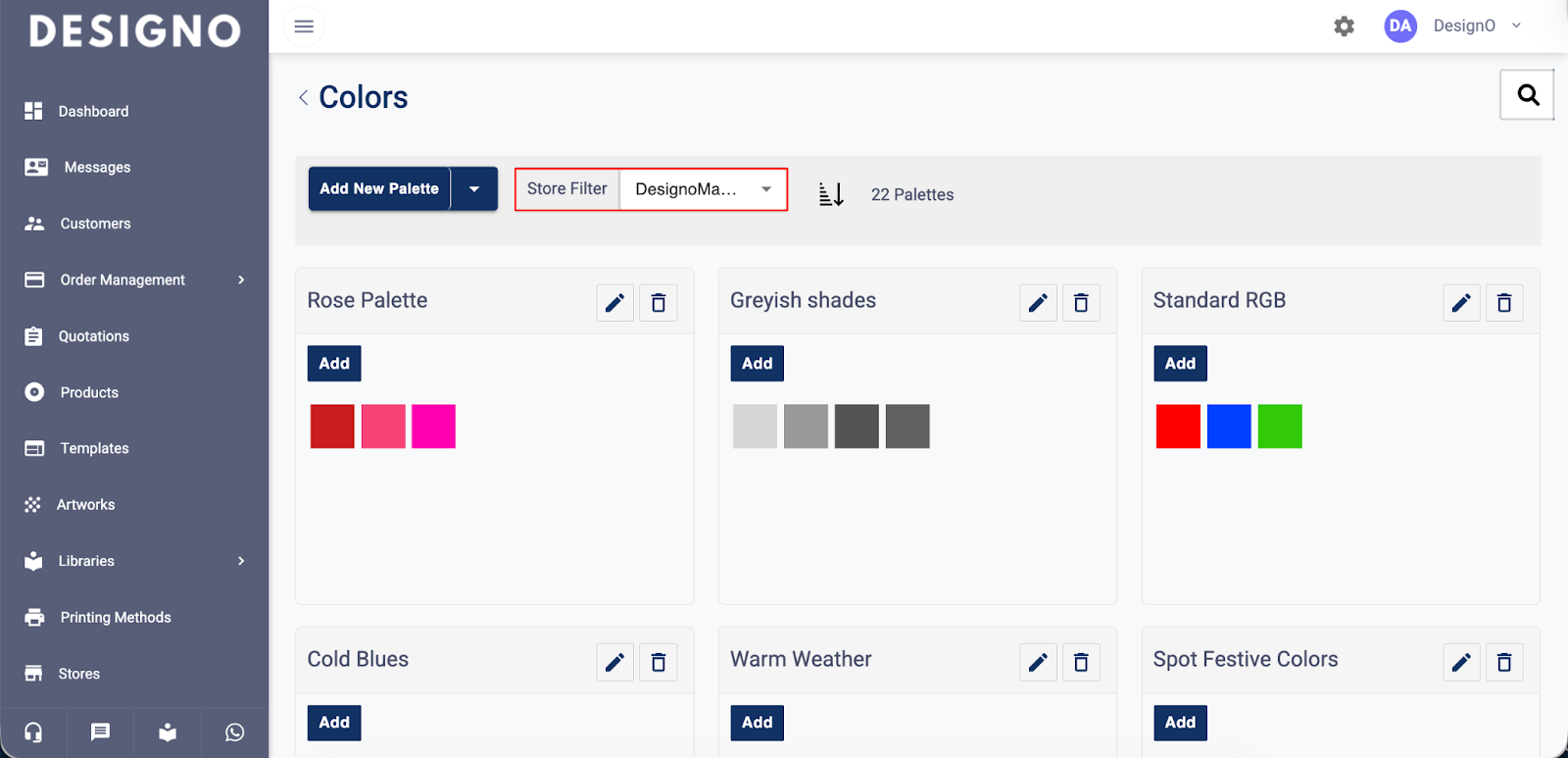

Step 4: Observe the default color palette for respective stores. Sort by stores if managing multiple stores.

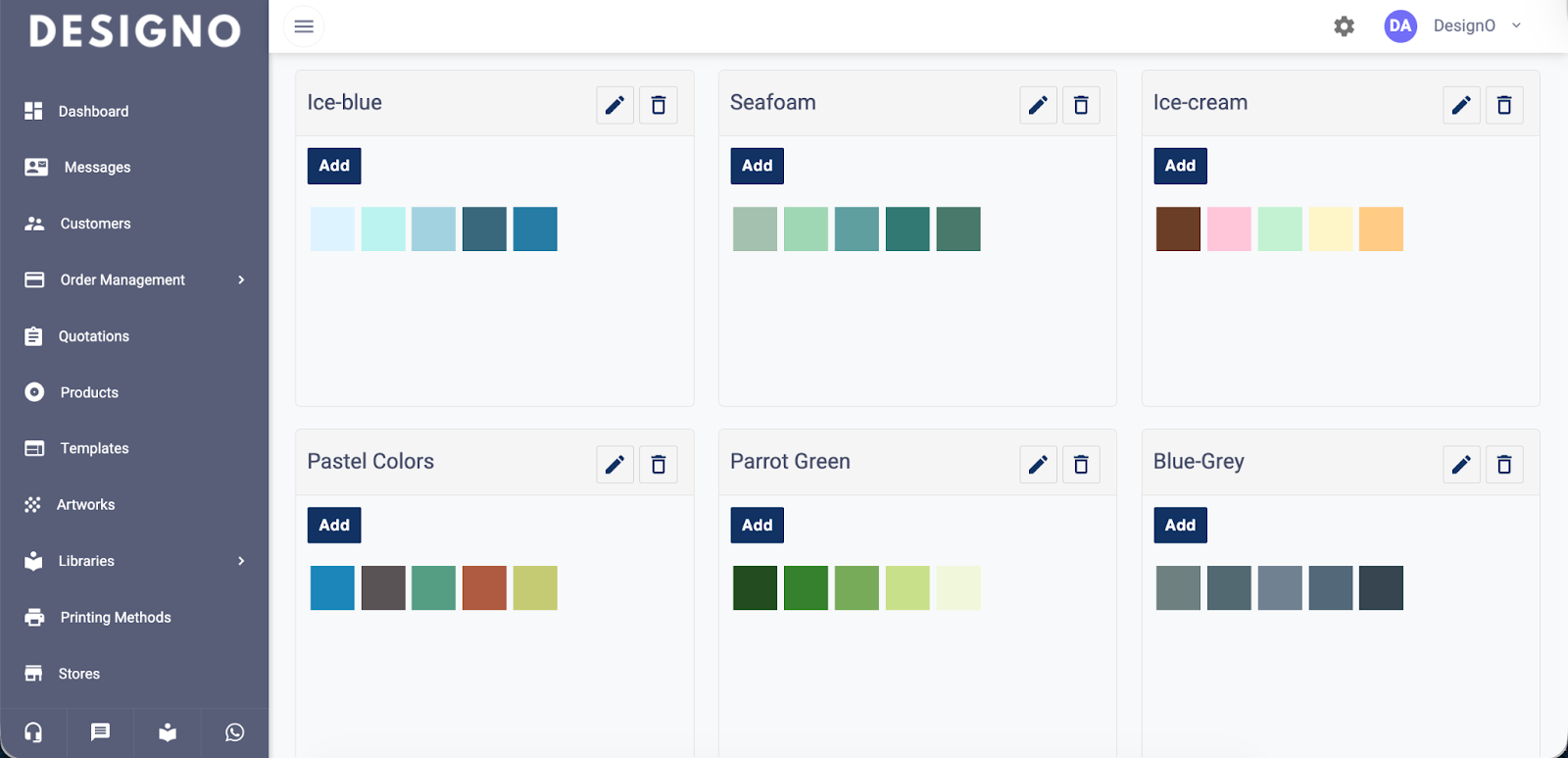

Step 5: Observe the color palettes. Each color palette is a collection of colors grouped together.

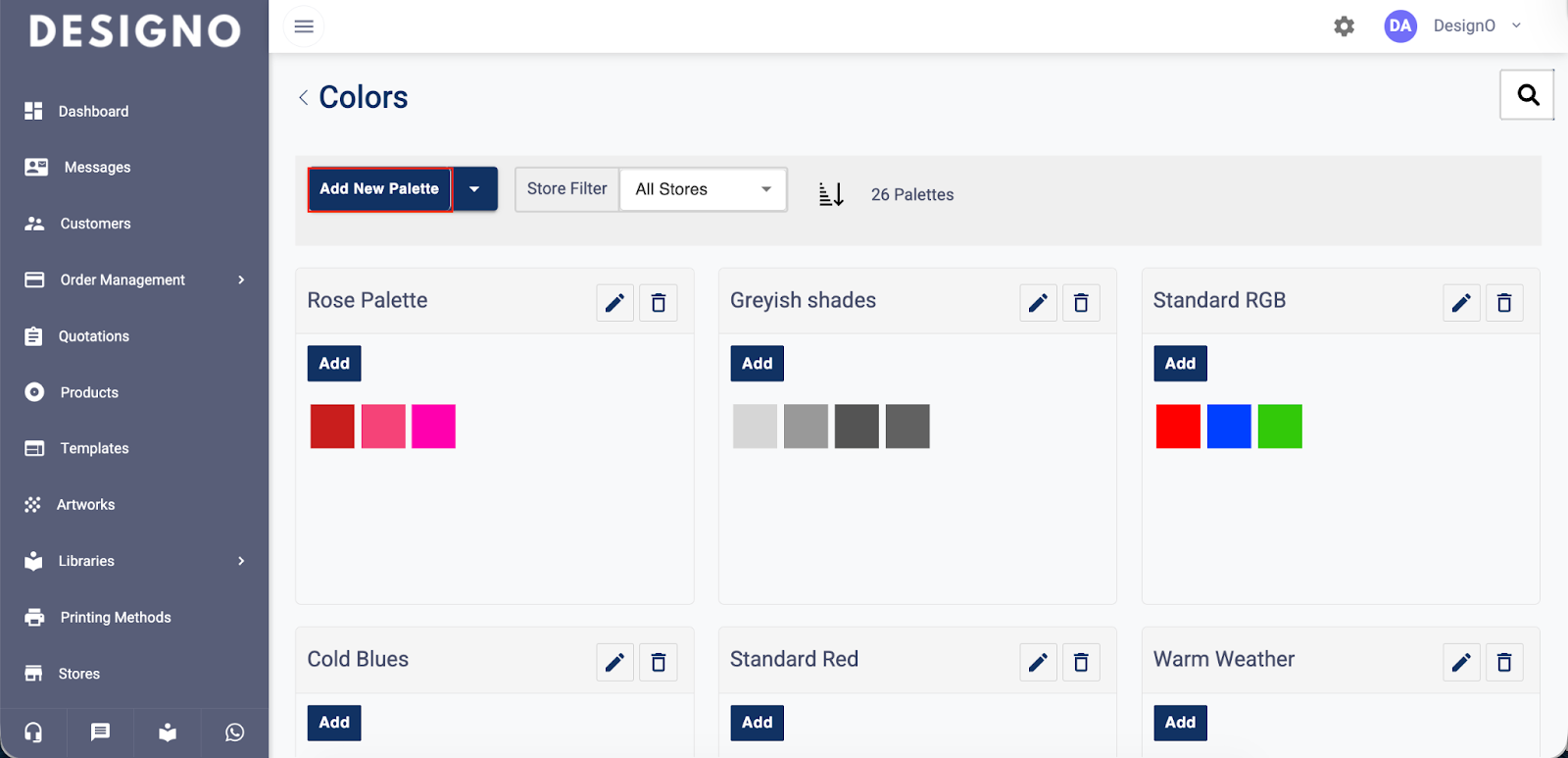

Step 6: Click on "Add New Palette" to create a new color palette.

Step 7: Select the store for the new palette. Click on "Select All" to assign the new palette to all stores.

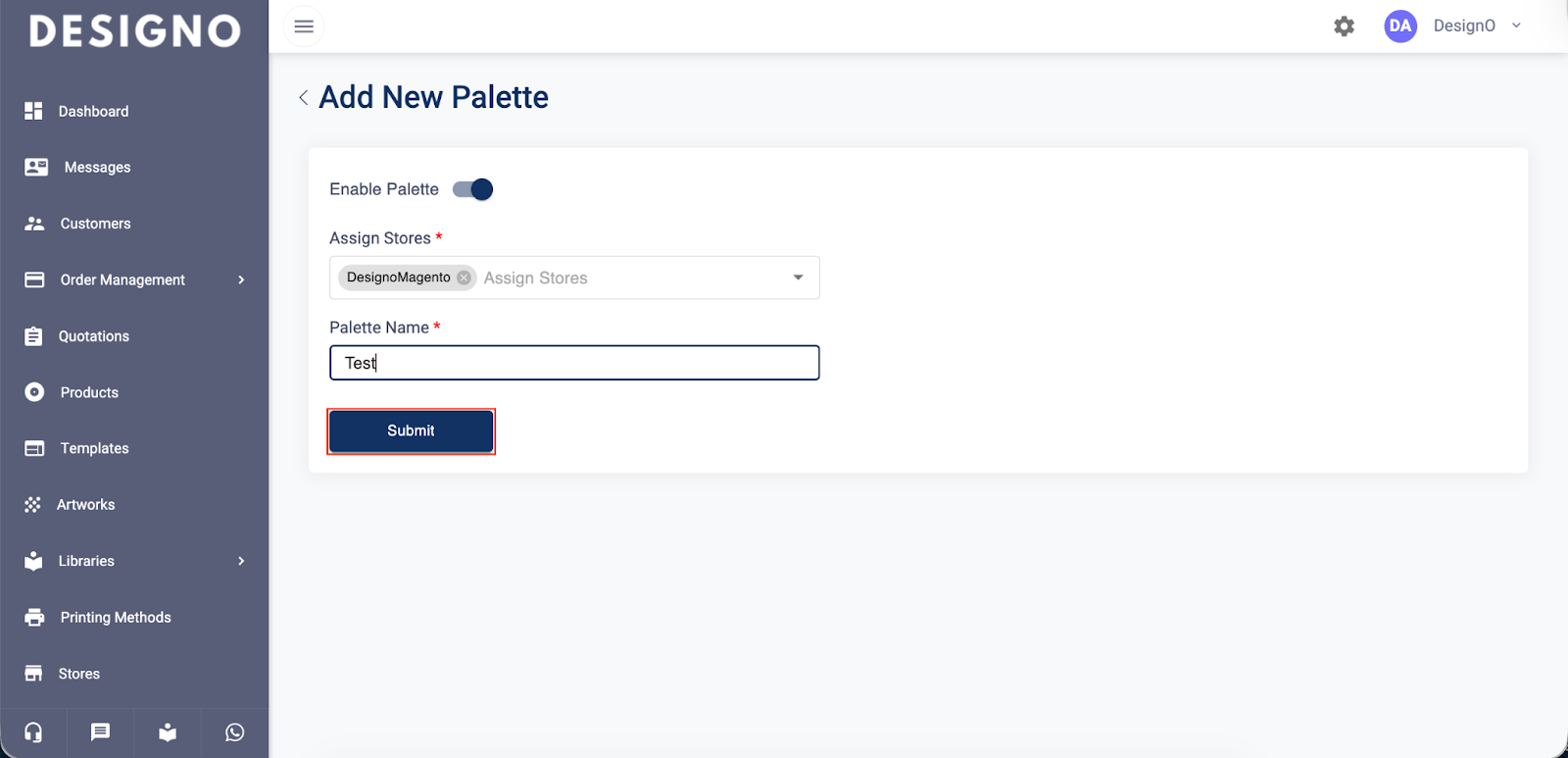

Step 8: Name the new color palette and click on "Submit".

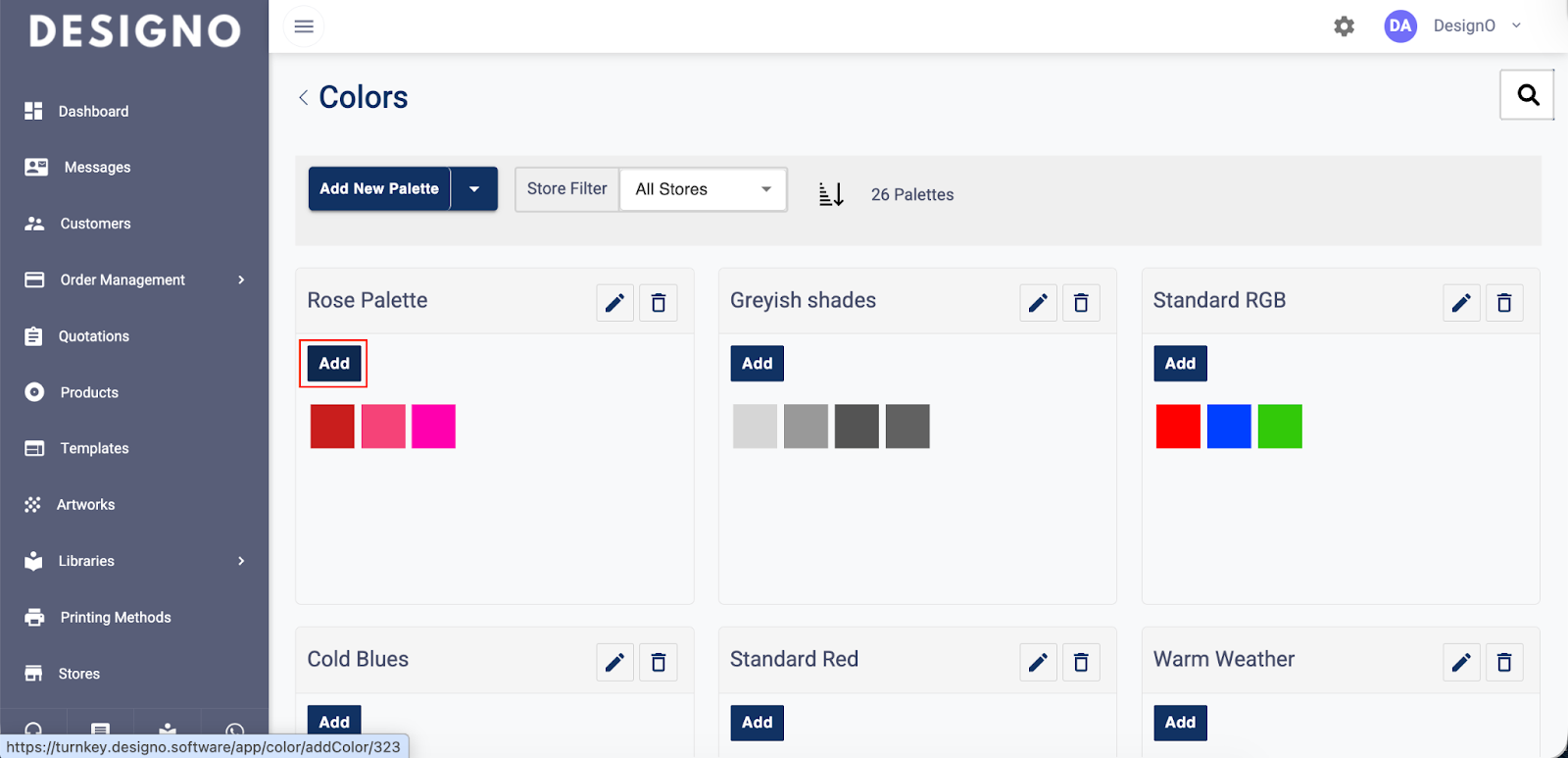

Step 9: To add colors to the new palette, click on "Add".

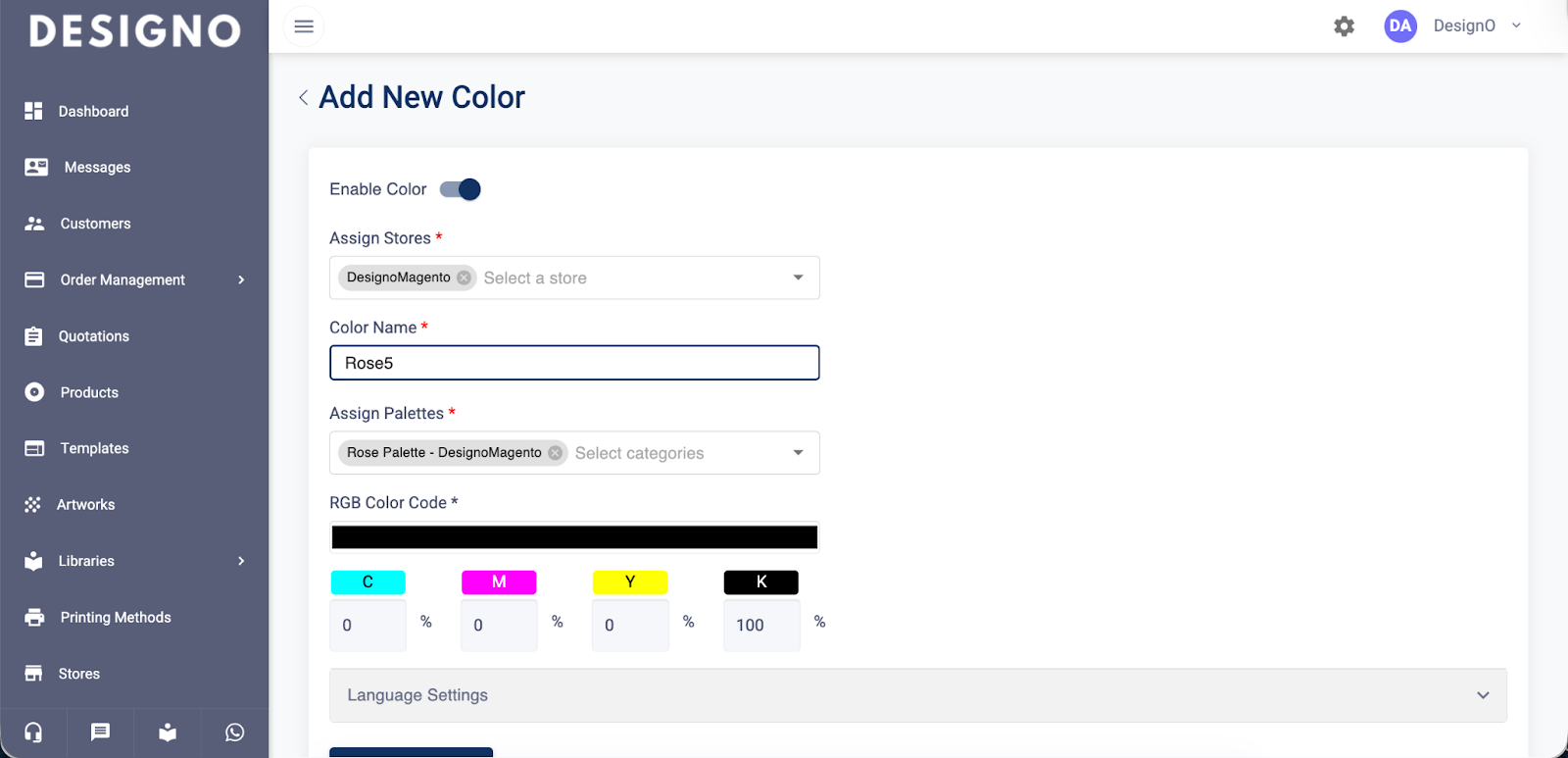

Step 10: Select the stores to assign the new color to, and enter a name of that color.

Step 11: Add the color to the selected palette by choosing color from color picker or entering the RGB hex code, or CMYK % percentage.

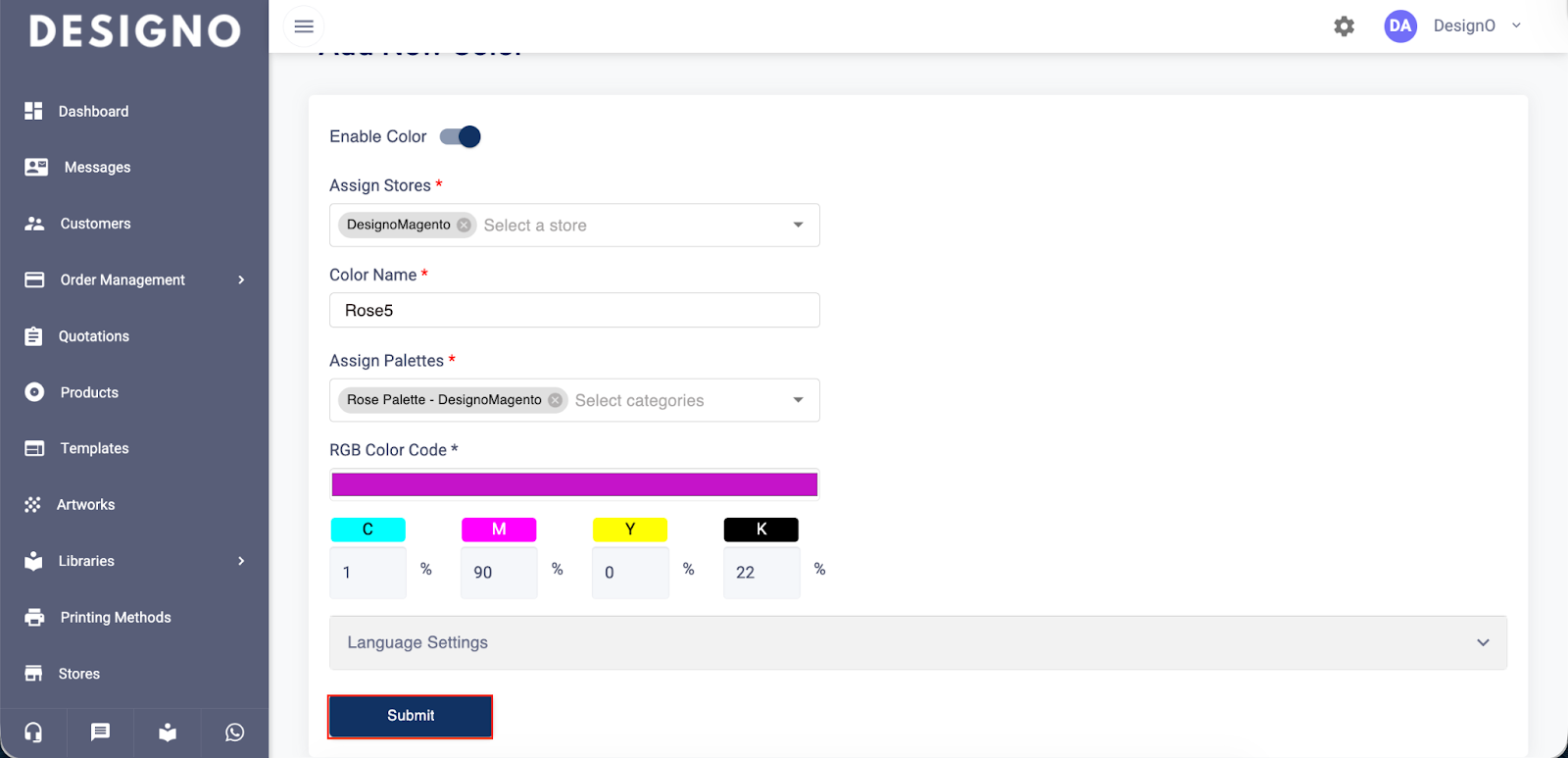

Step 12: Click on "Submit" to add the color to the palette.

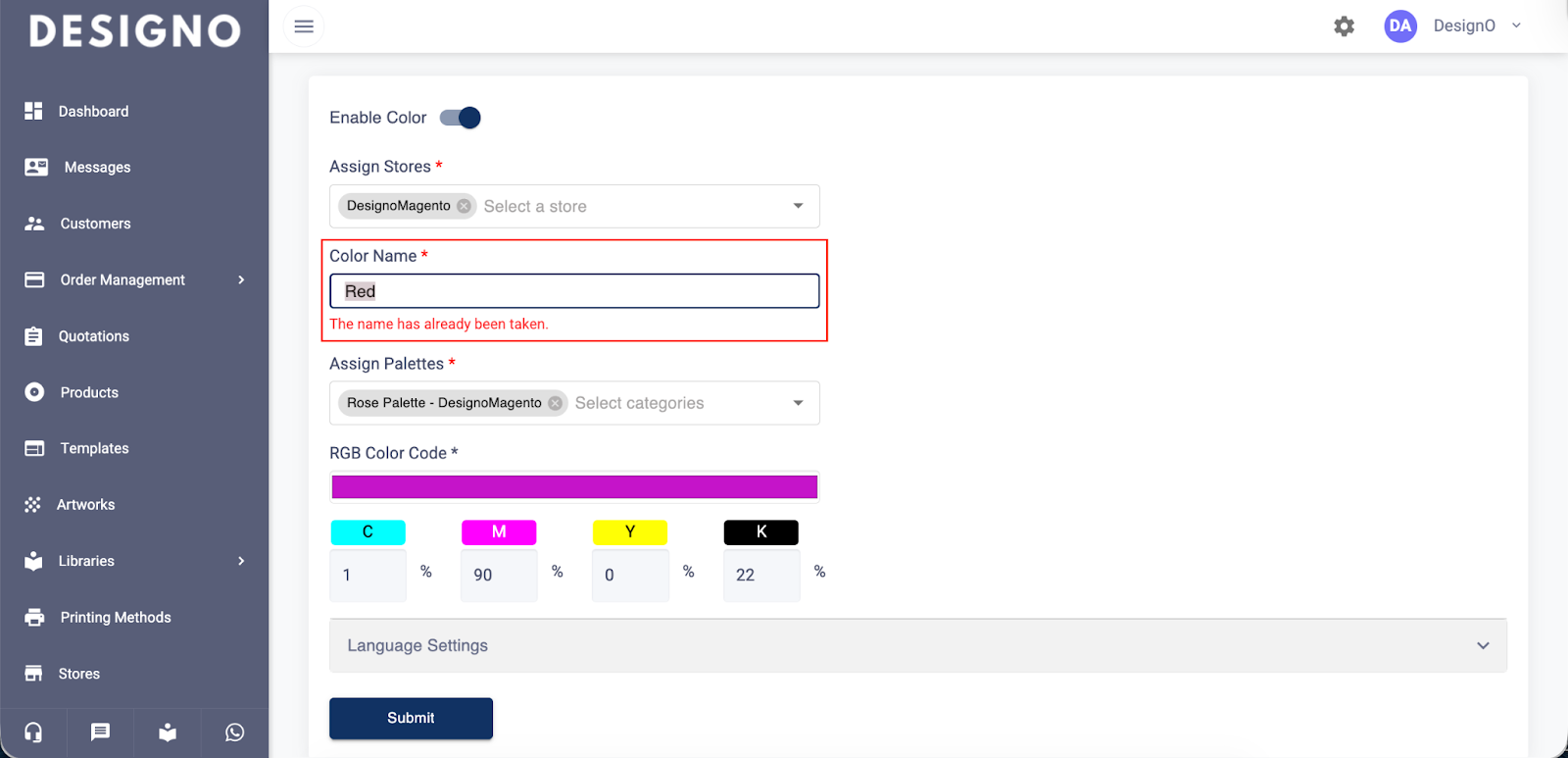

Step 13: If a color already exists in a palette, rename it to add it again.

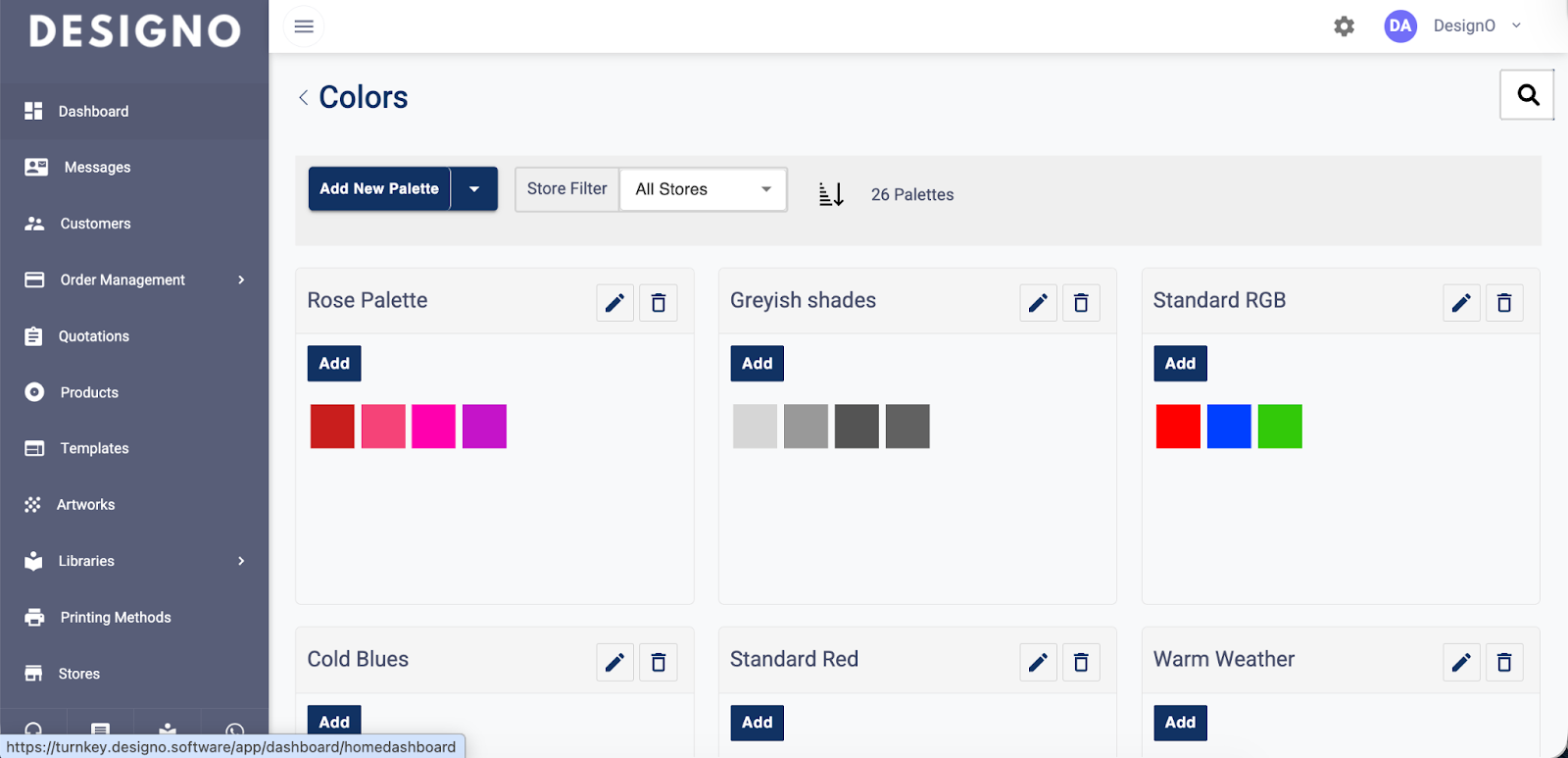

Step 14: Observe the added color in the color palette.

Now, see where these color palettes are used.

Step 15: Go to Settings and click on the Personalization Profile.

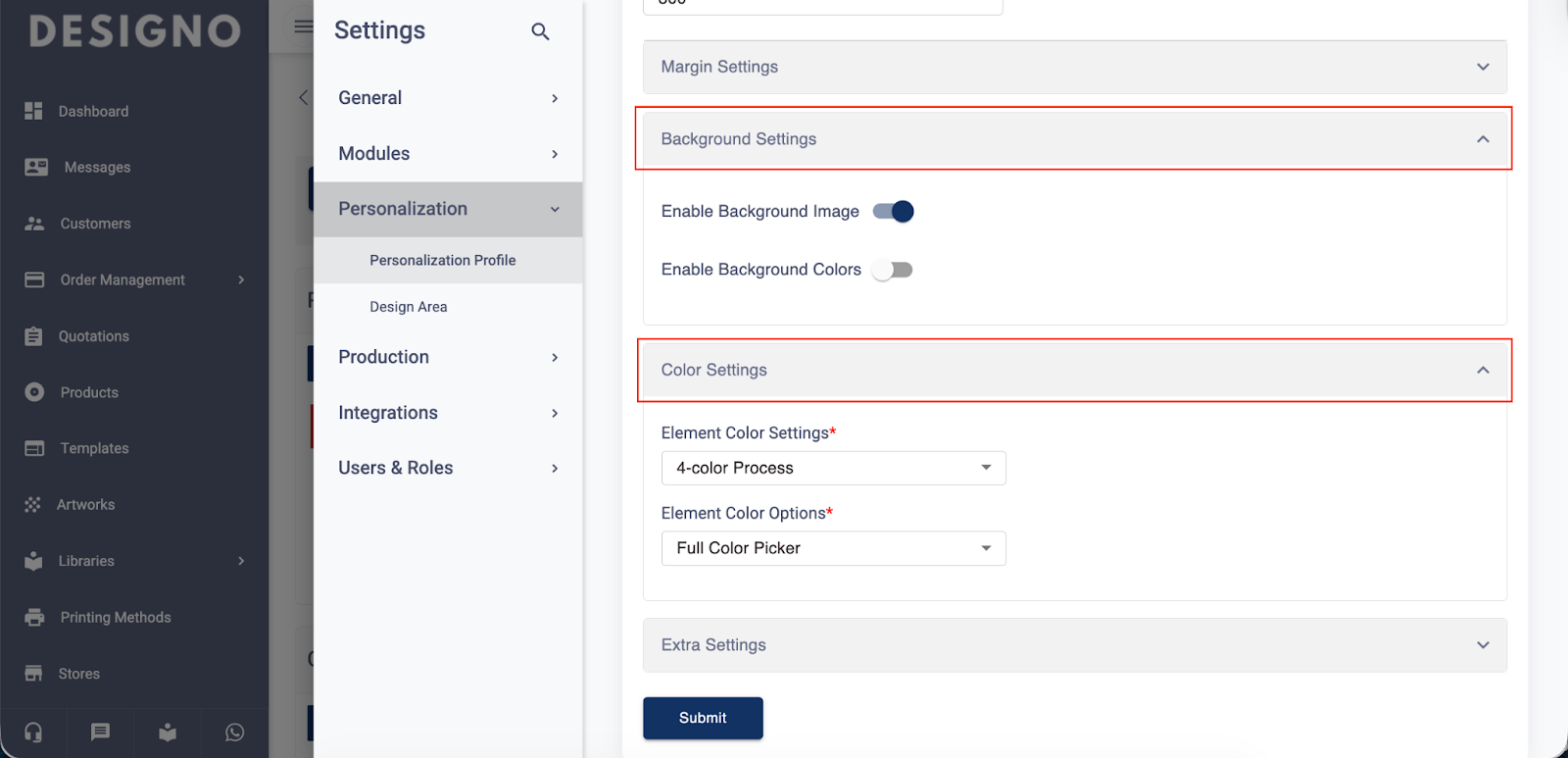

Step 16: Click on any personalisation profile to which you want to add this color palette to and move to the Background Settings and Color Settings.

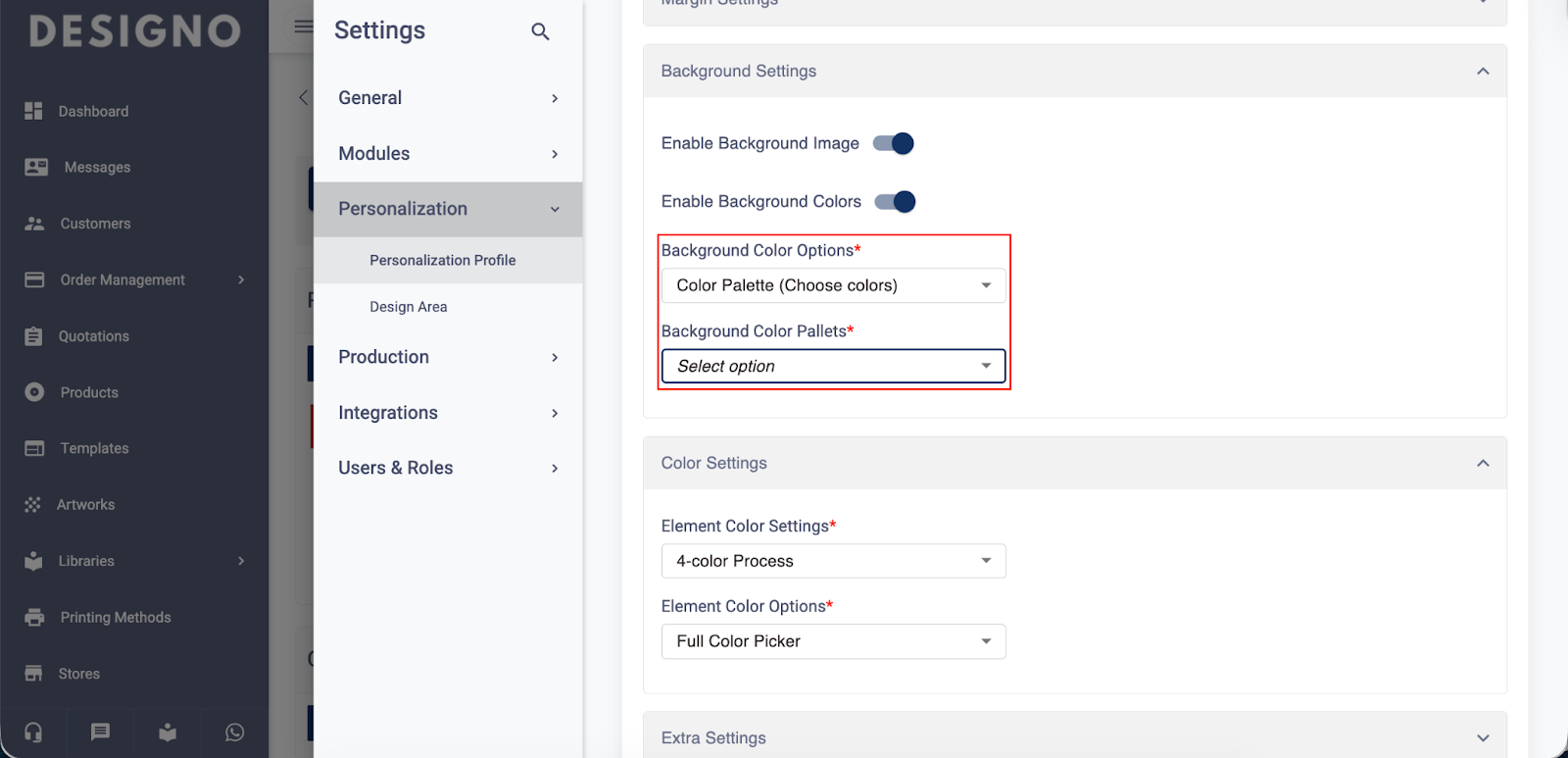

Step 17: Enable the background colors and select the color palette.

Step 18: Now open the Design Studio of the Product to which the personalization profile was assigned to, so that you can view the background colors.

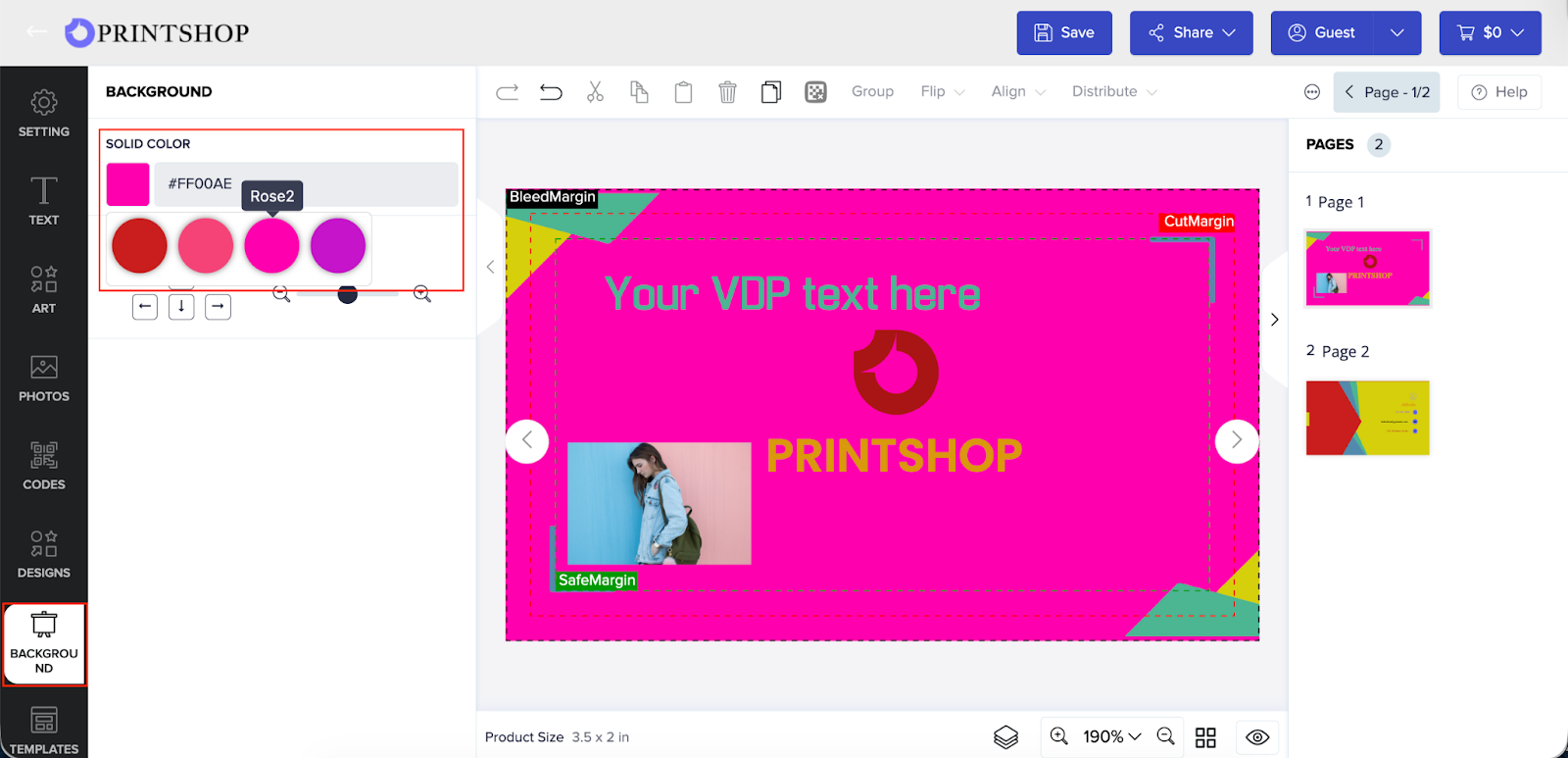

Step 19: Observe the background color in the DesignO studio.
